Excavator

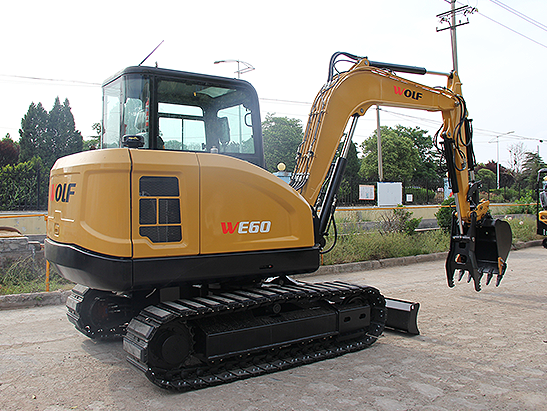

WE60
Certified
ISO9001:2008
Certified
Certified
Certified
Excavator
Certified
ISO9001:2008
Certified
Certified
Certified
| Travel System | |
|---|---|
| Travel motors | KYB, Japan; |
| Support roller quantities | 2×5 |
| Carrier roller quantities | 2×1 |
| Travel shoes | 2×37 |
| Travel speed | 2.5/4.0(km/h) |
| Drawbar pulling force | 50.4kN |
| Gradeability | 70%(30°) |
| Track shoes thickness | 6mm |
| Engine | |
| Model | Yanmar 4TNV94L |
| Type | Direct injection, 4 stroke, water cooled, natural intake |
| No. of cylinder | 4 |
| Displacement | 3.054L |
| Power output | 36.2kw/2100rpm |
| Max. torque | 193.2～210.6N.m/1260±100 rpm |
| Hydraulic System | |
| Pump | KYB, Japan |
| Type | axial piston pump+ gear pump |
| Max. discharge flow | 160 (L/min) |
| Max. discharge pressure | |
| Boom, arm and bucket | 21 MPa |
| Travel circuit | 12 MPa |
| Swing circuit | 9 MPa |
| Control circuit | 3.9 MPa |
| Pilot control pump | Gear type |
| Main control valves | Hydro Control |
| Oil cooler | Air cooled type |
| Cab & Electrical System | |
| Cab | Installed with silicon oil rubber, adjustable luxurious seat, cold and warm air-conditioning system plus flexible pilot control system |
| Voltage | 12V |
| Batteries | 1x12V |
| Battery capacity | 80Ah |
| Boom, Arm ＆ Bucket | |
| Boom cylinder | Φ110×Φ65×S720-L1095 |
| Arm cylinder | Φ85×Φ55×S880-L1280 |
| Bucket cylinder | Φ80×Φ50×S600-L925 |
| Swing System | |
| Swing motor | KYB, Japan |
| Swing motor type | Axial-piston motor |
| Brake | Hydraulic oil released |
| Parking brake | Hydraulic disc brake |
| Swing speed | 10 r/min |
| Refilling Capacity & lubrication | |
| Fuel tank | 125 L |
| Cooling system | 15 L |
| Engine oil | 10.5 L |
| Hydraulic oil tank | 78L Tank Oil Level / 100L Hydraulic System |
| Bucket | |
| Bucket capacity | 0.22m3 (SAE) |
| Bucket Capacity scope | 0.072-0.25m3 |
| Number of bucket teeth | 5 |
| Bucket width | 750 mm |
| Working ranges | |
| Boom length | 3050mm |
| Max. digging height | 5889mm |
| Max. dumping height | 4201mm |
| Max. digging depth | 3812mm |
| Max. vertical digging depth | 3008mm |
| Max. digging distance | 6257mm |
| Max. digging radius at ground level | 6102mm |
| Min swing radius of work equipment | 2585mm |
| Digging Force (ISO6015) | |
| Arm length | 1580mm |
| Bucket digging force | 36.7 KN |
| Arm digging force | 26.1 KN |
| Overall Dimensions | |
| Overall length | 5943mm |
| Ground contact length | 3375mm |
| Overall height(to top of boom) | 1995mm |
| Overall width | 2000mm |
| Overall height(to top of cab) | 2619mm |
| Counter weight ground clearance | 740mm |
| Min Ground clearance | 360mm |
| Tail swing radius | 1745mm |
| Track grounding length | 2000mm |
| Track length | 2665mm |
| Track gauge | 1600mm |
| Track width | 2000mm |
| Track Shoe width | 400mm |
| Counter weight height | 1062mm |
| Revolving frame width | 1790mm |
| Distance from swing center to tail | 1745mm |
| Operating Weight and Ground Pressure | |
| Operating weight | 5820 Kg |
| Ground pressure | 34 KPa |
