Specifications


Operating Weight	890kg
Digging bucket capacity	0.022cbm
Digging bucket width	400mm
Engine	KD192F-1 E5
Rated power	7kw
Displacement	6.8ml/r
Bore stroke	single cylinder, fan cool
Main pump	C108-51A-01000A0
Pump flow	18L/min
Hydraulic oil tank capacity	9.4L
Engine oil tank capacity	2.8(1.3)L
Diesel tank capacity	7 L
Working pressure	16Mpa
Valve	C110-52A-01000A0
Swing motor	C110-57A-01000A0
Traveling motor	C108-56A-01000A0
Hydraulic oil tank	16.5L
Diesel oil tank	7L
Arm digging force	5.2Kn
Bucket digging force	7.2Kn
Electric pressure	12V
Electrick power	5W
MAIN DIMENSIONS
Overall dimension( LxWxH)	2976×840×2225 mm
Tail swing radius	815 mm
Total length of track on land	1233mm
Platform ground clearance	380 mm
Platform back turning radius	784 mm
Chassis width	896 mm
Track width	840 mm
Chassis ground clearance	132 mm
Truntable width	760 mm
OPERATING RANGE
Max. Digging depth	1520 mm
Boom length	1480 mm
Max. Digging height	2585 mm
Max. Dumping height	1715 mm
Max. Digging radius on ground	2850 mm
Min. Rotation radius	1595 mm
Ground length(in trasportion)	1755 mm
Max. pushing height	146 mm

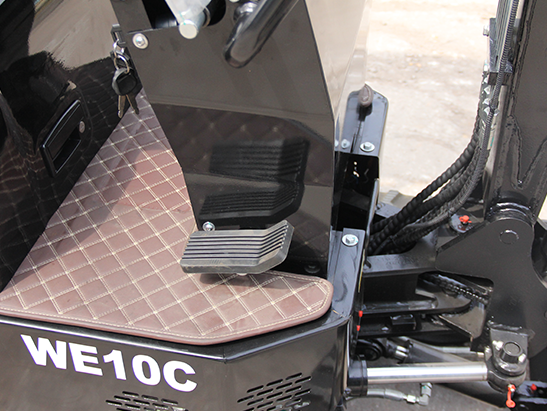

WE10C
