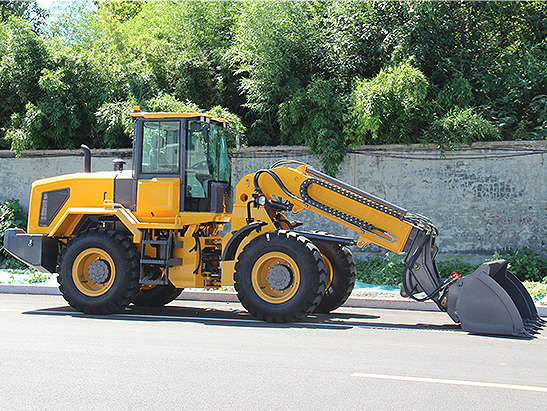

WL933NT is a telescopic loader based on WL933N. The maximum lifting height of this loader is 5.3m.
| Type | Data |
|---|---|
| Bucket Capacity (Cbm): | 1.5 |
| Rated Load (Kg): | 3000 |
| Overall Weight (Kg): | 8600 |

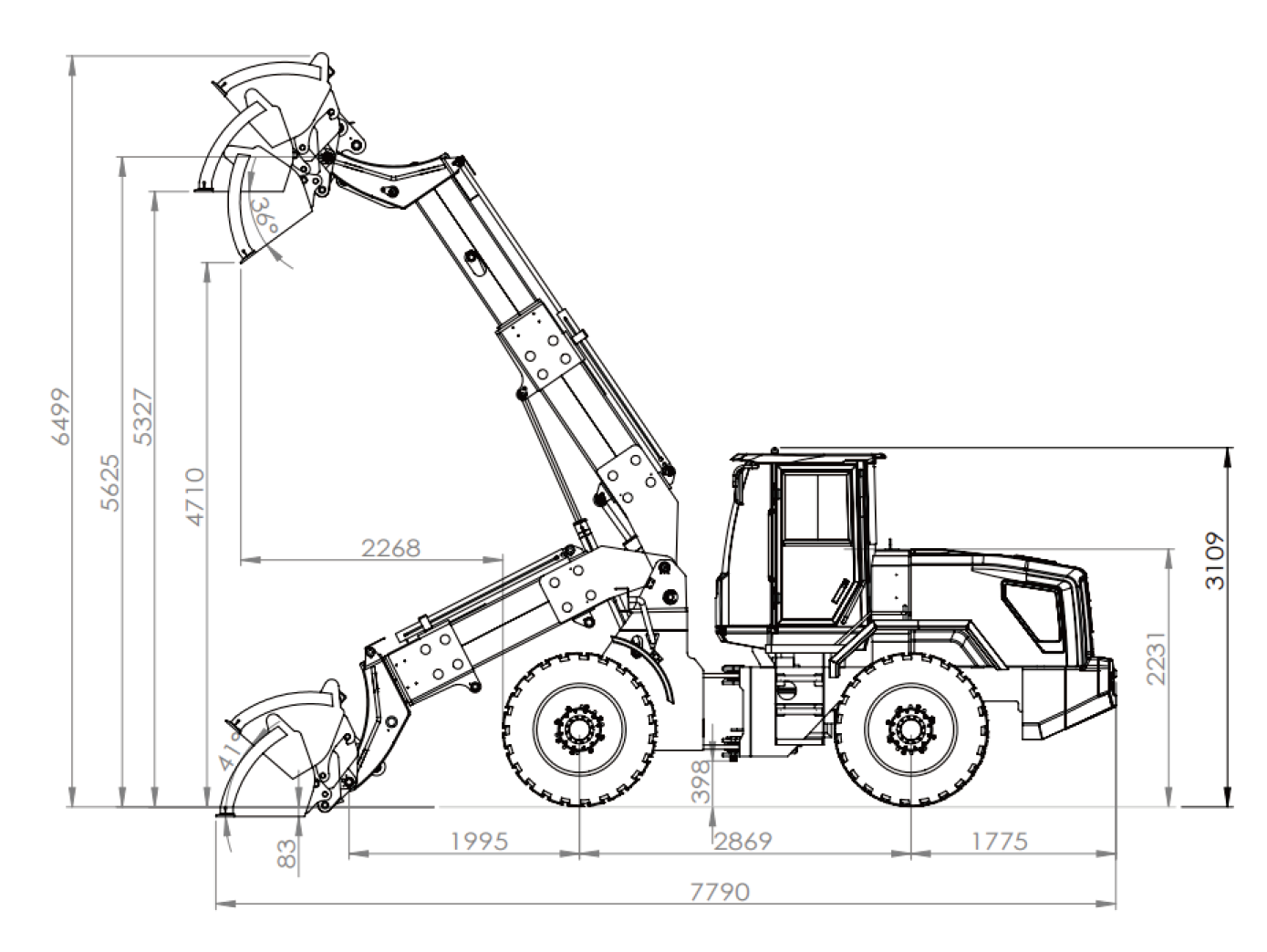

| Max. Dumping Height(mm): | 4710 |
| Standard Engine: | WEICHAI DEUTZ |
| Rated Power (Kw): | 92 |
| Rated Speed (R/Min): | 2200 |
| Optional Engine: | WP6G125E22 |
| Wheel Base (mm): | 2869 |
| Wheel Thread(mm): | 1670 |

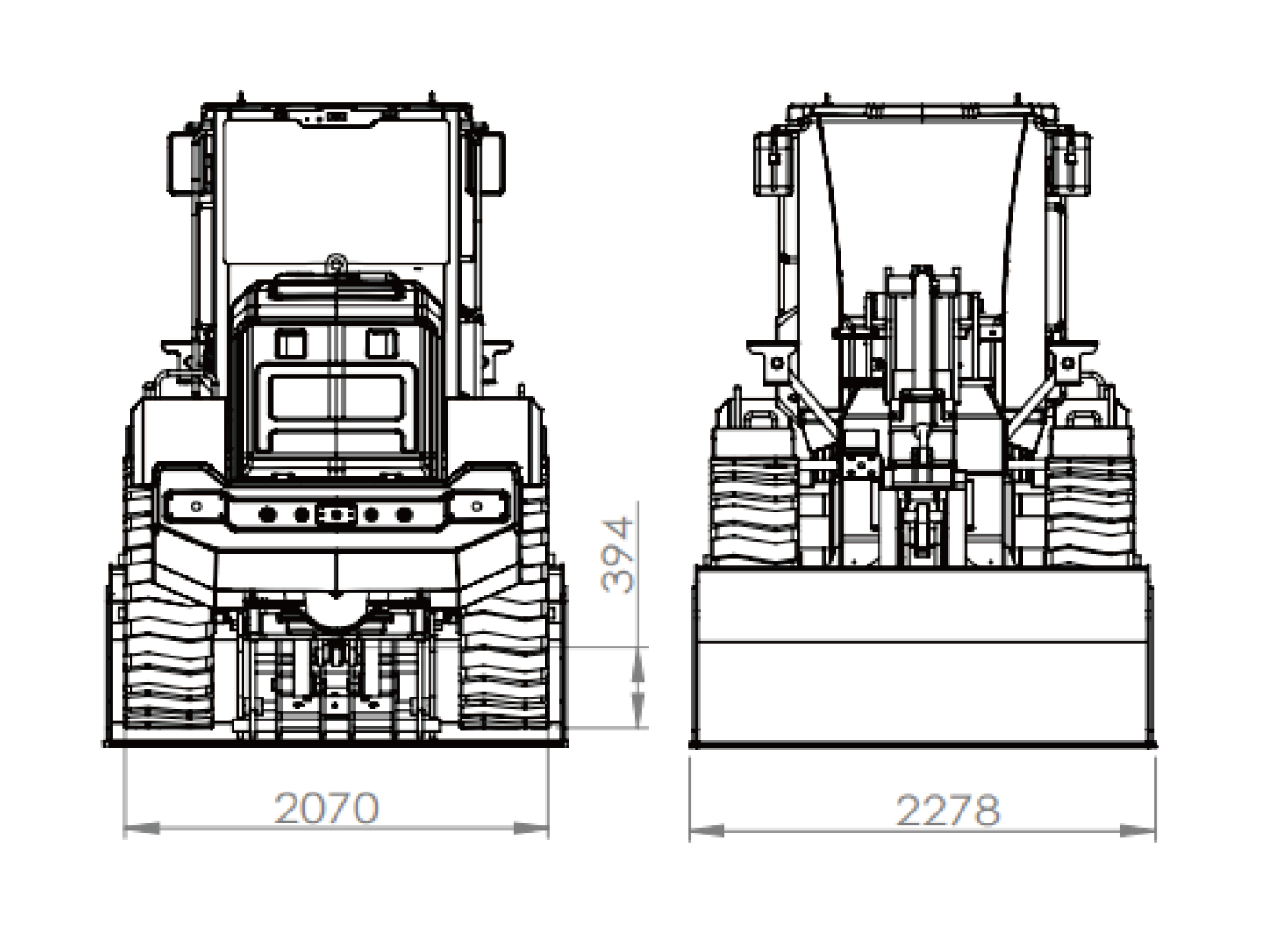

| LX WXH (mm): | 7790×2278×3109 |
| Standard Tire: | 16/70-24 |
| Option Tire: | 17.5/25 |
