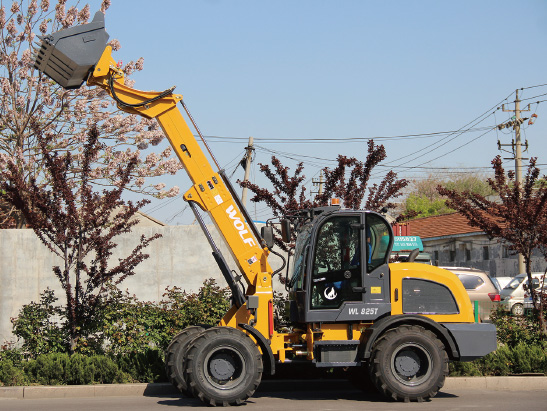

The WOLF Telescopic Loader WL825T is a heavy-duty machine designed for material handling and construction applications. It is equipped with a telescoping boom that extends up to 5.8 meters and has a lifting capacity of up to 2000 kg. The loader is optional with a Cummins diesel engine, which delivers 55kW of power and meets the latest emission standards.
High level of reliability
Through easily accessible maintenance points and timetested and proven components.
Reduced operating costs
Through optimum power to weight ratio and compact dimensions.
Standard Configurations
Changchai 4G33 engine 70kw, electronic control joystick , LED lights, back camera, Varta Battery, 16/70-20 tires,3 hydraulic lines, floating function, luxury cabin with heater, 220V engine preheat, warning light, adjustable steering wheel and seat, bucket can be level automatic, back sound, radio, fan, hand brake, extinguisher, window hammer, Free parts, tool box.
Optional
Imported engine with Euro V or EPA Tier 4 standards, Quick Hitch, double heater, air conditioning, electric floating, extra Hydraulic Line, fully electronic joystick, different attachments etc.
Type | Data |
---|---|
Bucket Capacity (Cbm): | 1.0-1.2 |
Rated Load (Kg): | 2000 |
Max Lifiting Capacity(kg) : | 2500 |
Overall Weight (Kg): | 5700 |
Dumping Clearance (mm): | 4006 |
Standard Engine: | CHANGCHAI 4G33 |
Rated Power (Kw): | 70 |
Rated Speed (R/Min): | 2400 |
Optional Engine: | XIN CHAI E5/CUMMINS |
Wheel Base (mm): | 2551 |
Tread (mm): | 1650 |
LX WXH (mm): | 5900×2055×2615 |
Standard Tire: | 16/70-20 |
Max. Driving Speed (km/h): | 20-30 |
