Telescopic Loader
Mini 780HT
Telescopic Loader
| Type | Data |
|---|---|
| Engine Model: | KUBOTA V1505 E5/EPA |
| Rated Power(kw): | 18.2 |
| Rated Speed(rpm): | 2300 |
| Rated load(kg): | 1000 |
| Max Lifiting Capacity(kg) : | 1200 |
| Rated Bucket Capacity(m3): | 0.3-0.4 |

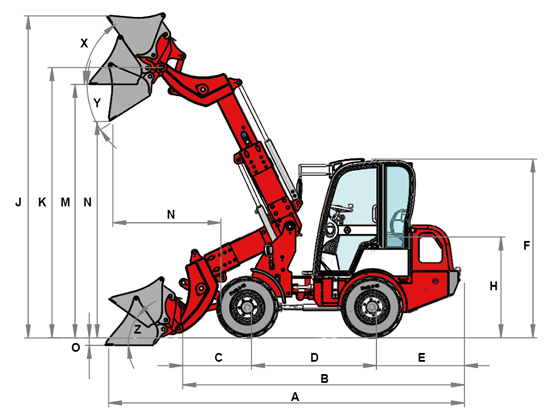

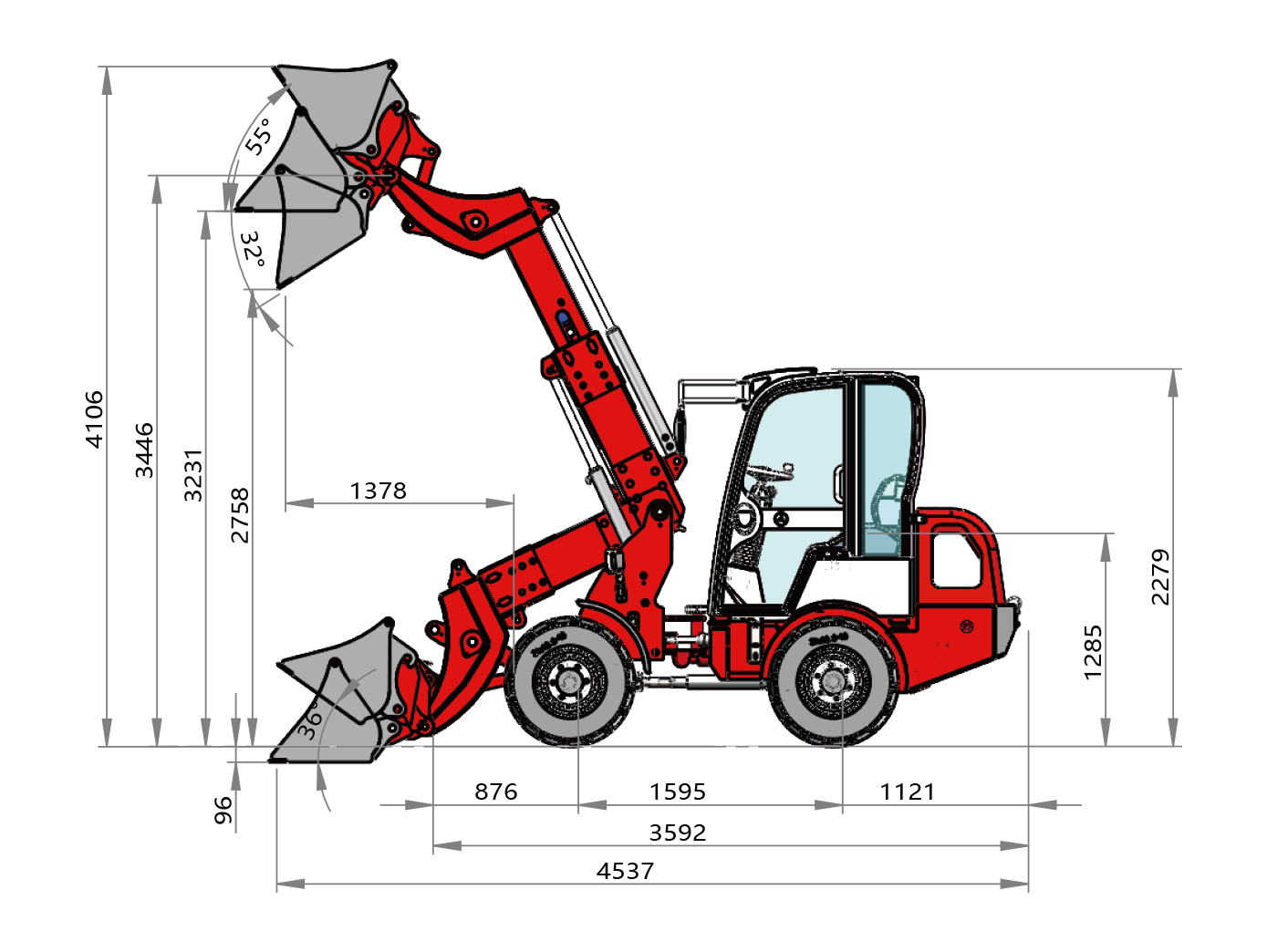

| Overall Size LxWxH(mm): | 4537×1520×2279 |
| Wheel base (mm): | 1595 |

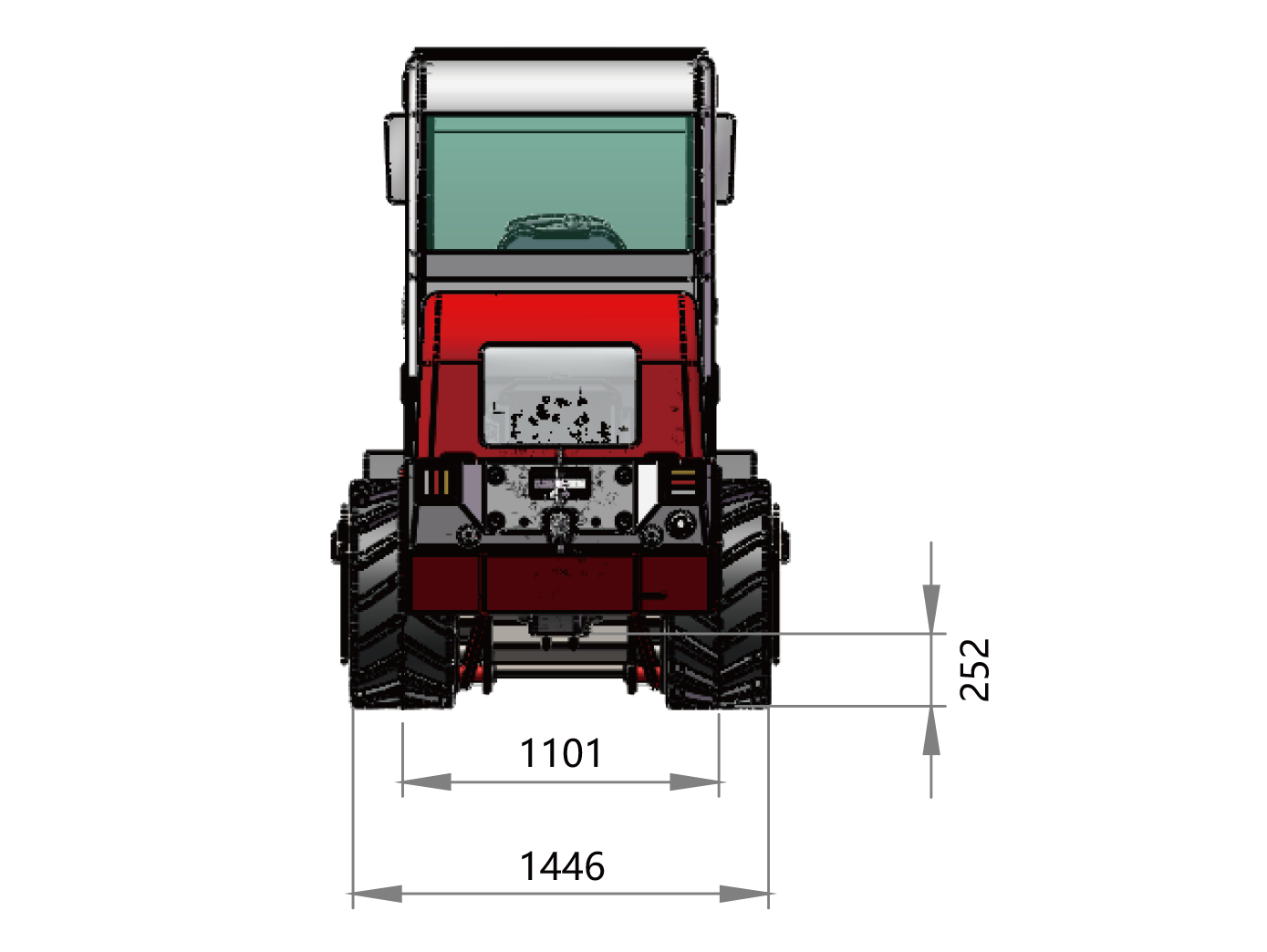

| Wheel thread(mm): | 1101 |
| Max.breakout force (KN): | 50 |
| Max.dump height(mm): | 2758 |
| Dump distance(mm): | 1378 |
| Total time(s): | 7.3 |
| Operating Weight(kg): | 2600 |
| Tyre: | 31×15.5-15 |
