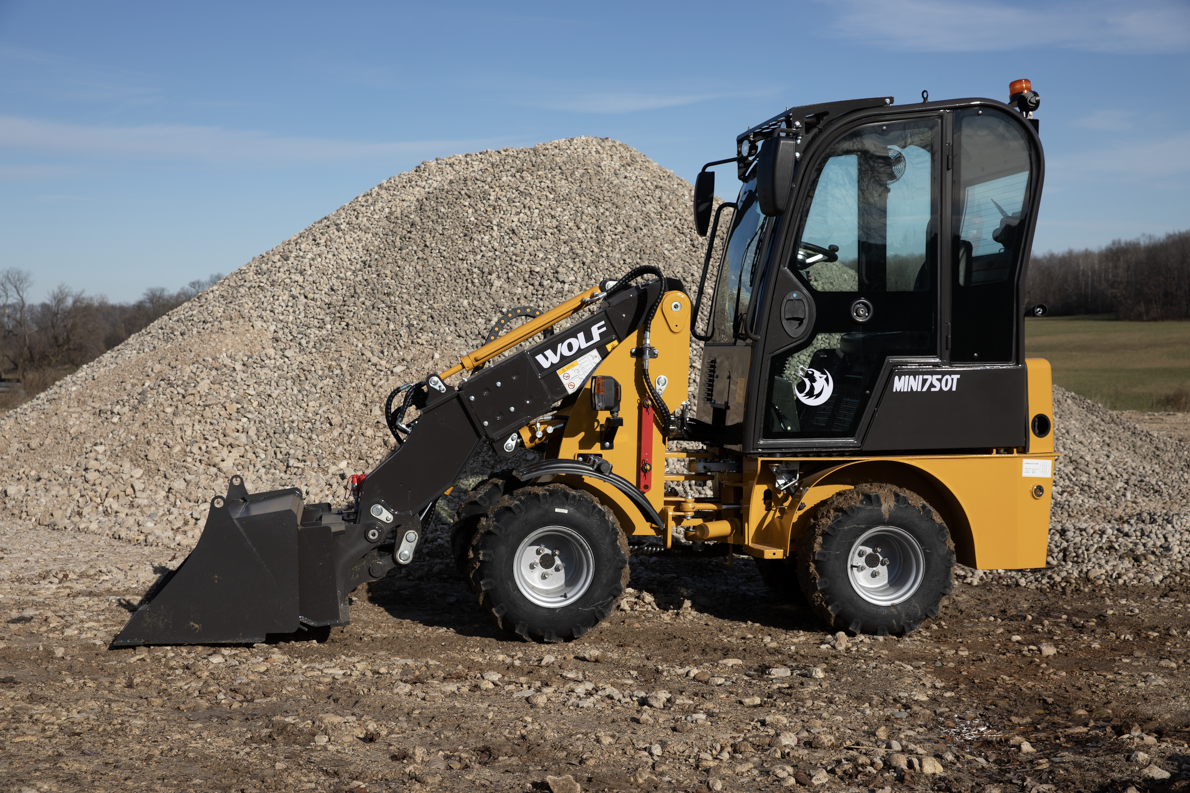

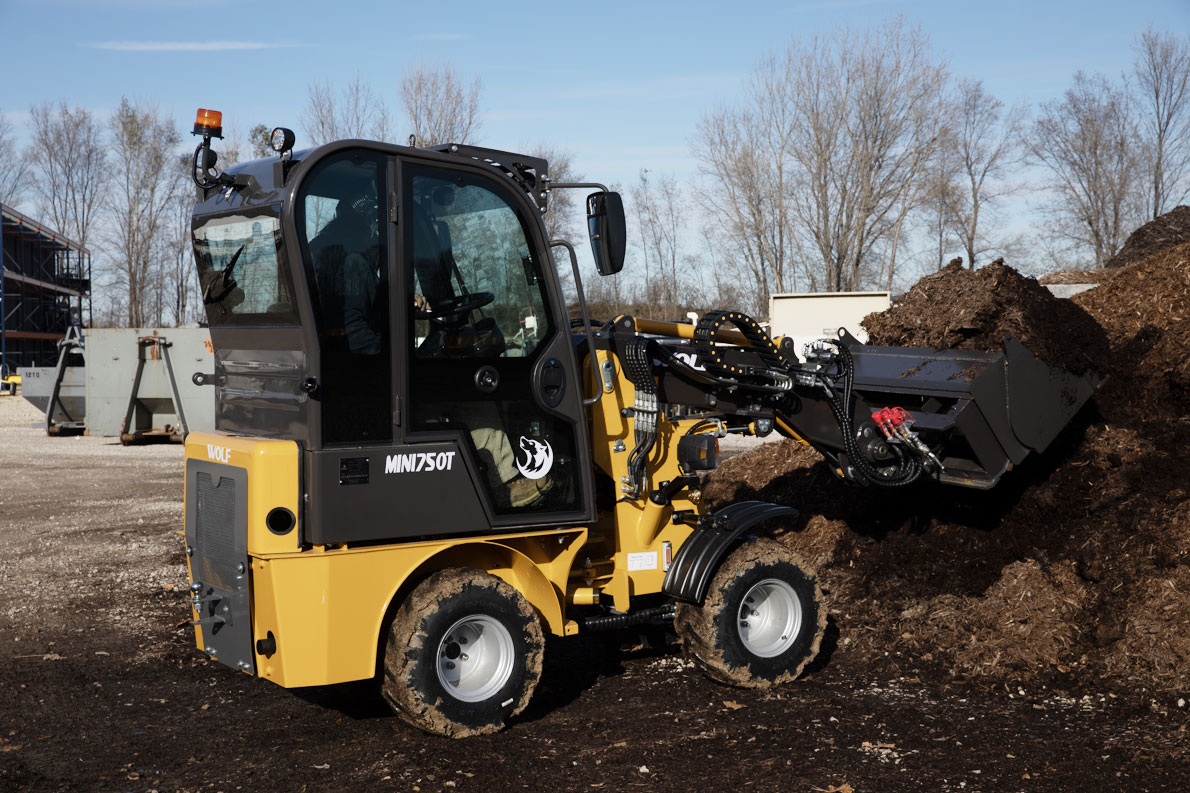

The WOLF MINI750T is a telescopic loader based on the MINI750 model. It offers two cabin options: a canopy and an enclosed cabin. Designed to meet Euro 5 and EPA Tier 4 emission standards, the MINI750T provides a selection of engine options to suit different needs. Its hydrostatic system ensures stable power and comfortable operation. With its compact size, the MINI750T is ideal for working in tight spaces, making it a versatile choice for various tasks.
| Type | Data |
|---|---|
| Engine Model: | Perkins 403J-11 E5/EPA |
| Rated Power(kw): | 18.4 |
| Rated Speed(rpm): | 2200 |
| Rated load(kg): | 600 |
| Rated Bucket Capacity(m3): | 0.2-0.4 |

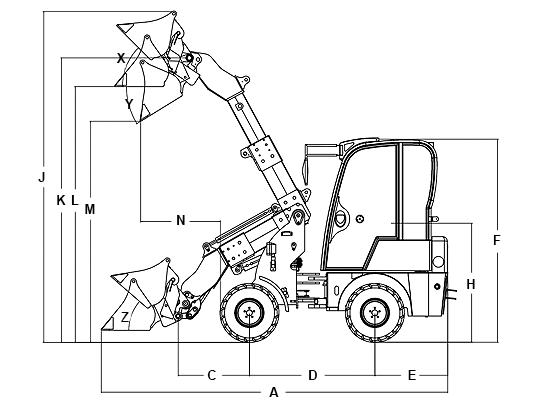

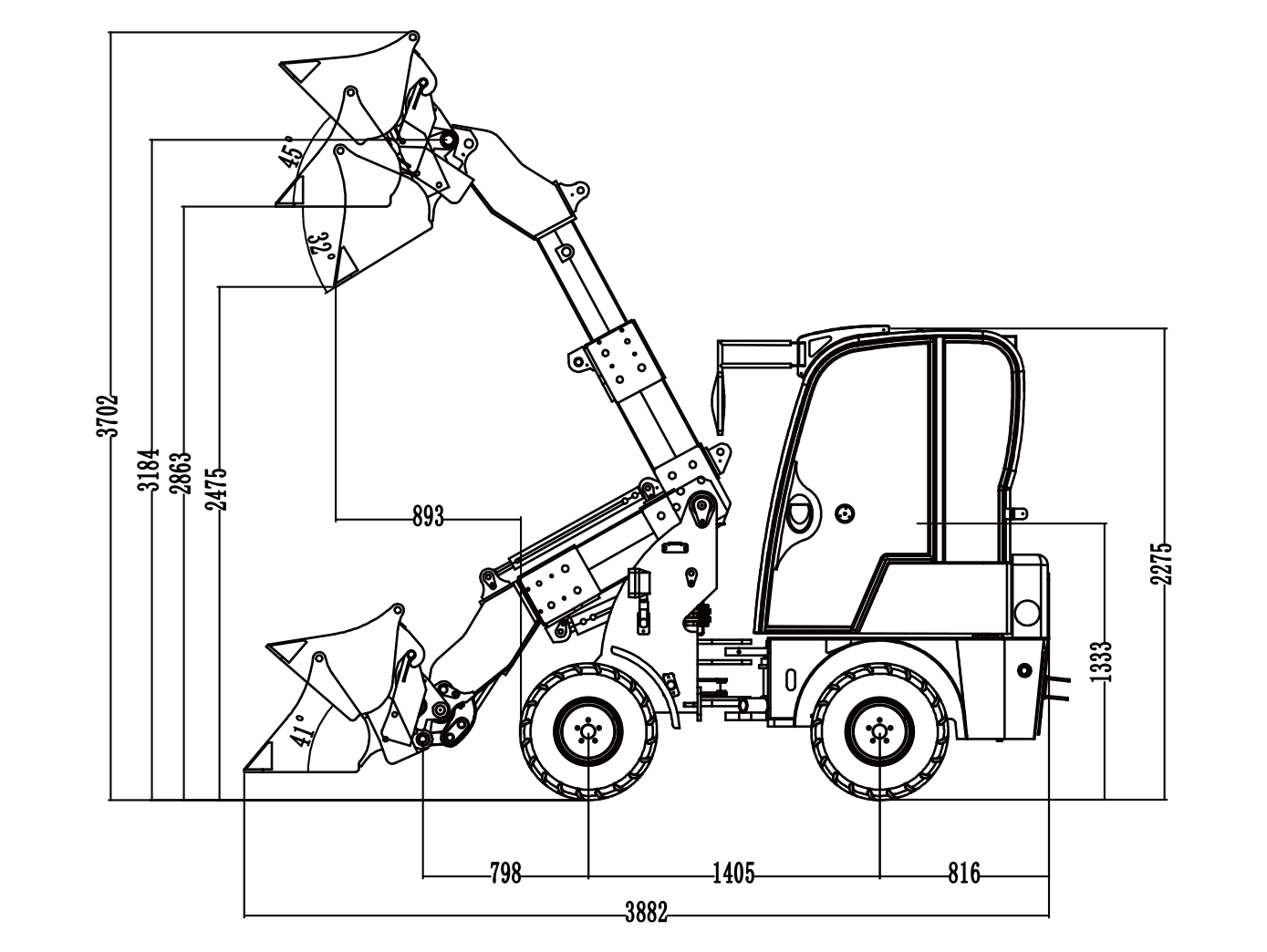

| Overall Size LxWxH(mm): | 3882×1145×2275 |
| Wheel base (mm): | 1405 |

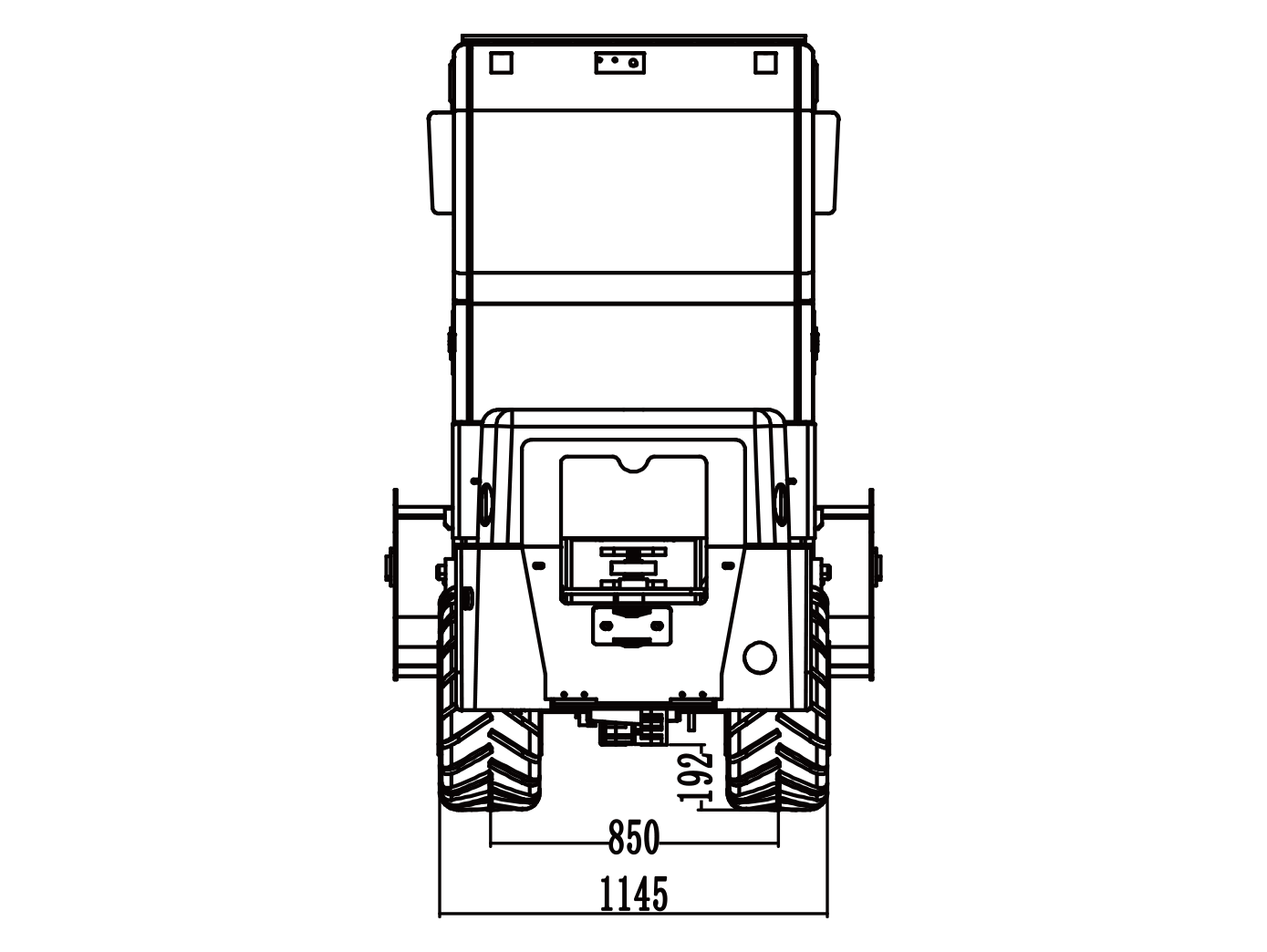

| Wheel thread(mm): | 850 |
| Max.breakout force (KN): | 43 |
| Max.dump height(mm): | 2475 |
| Dump distance(mm): | 893 |
| Total time(s): | 7.5 |
| Operating Weight(kg): | 2050 |
| Tyre: | 26×12.00-12 |
