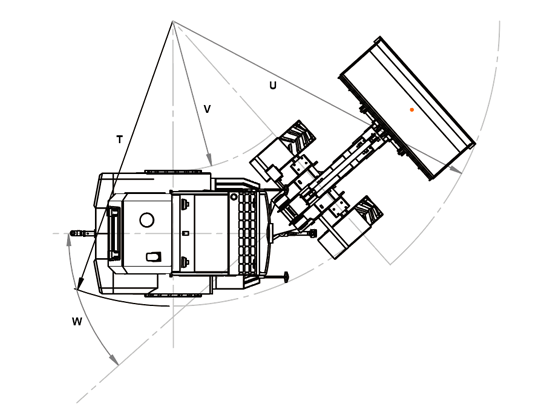

WL812T is a telescopic loader based onWL812. Flexible turn angle design makes you turn the loader easily even in the narrow and hard road.In the luxury cabin, big room and complete wind screen glass provide operator with excellent view. Adjustment dash-board will help operator drive better.
| Type | Data |
|---|---|
| Engine Model: | Changchai 490 |
| Rated Power (Kw): | 39 |
| Rated Speed (rpm): | 2650 |
| Rated Load(kg): | 1200 |
| Rated Bucket Capacity(m3) | 0.6-0.9 |

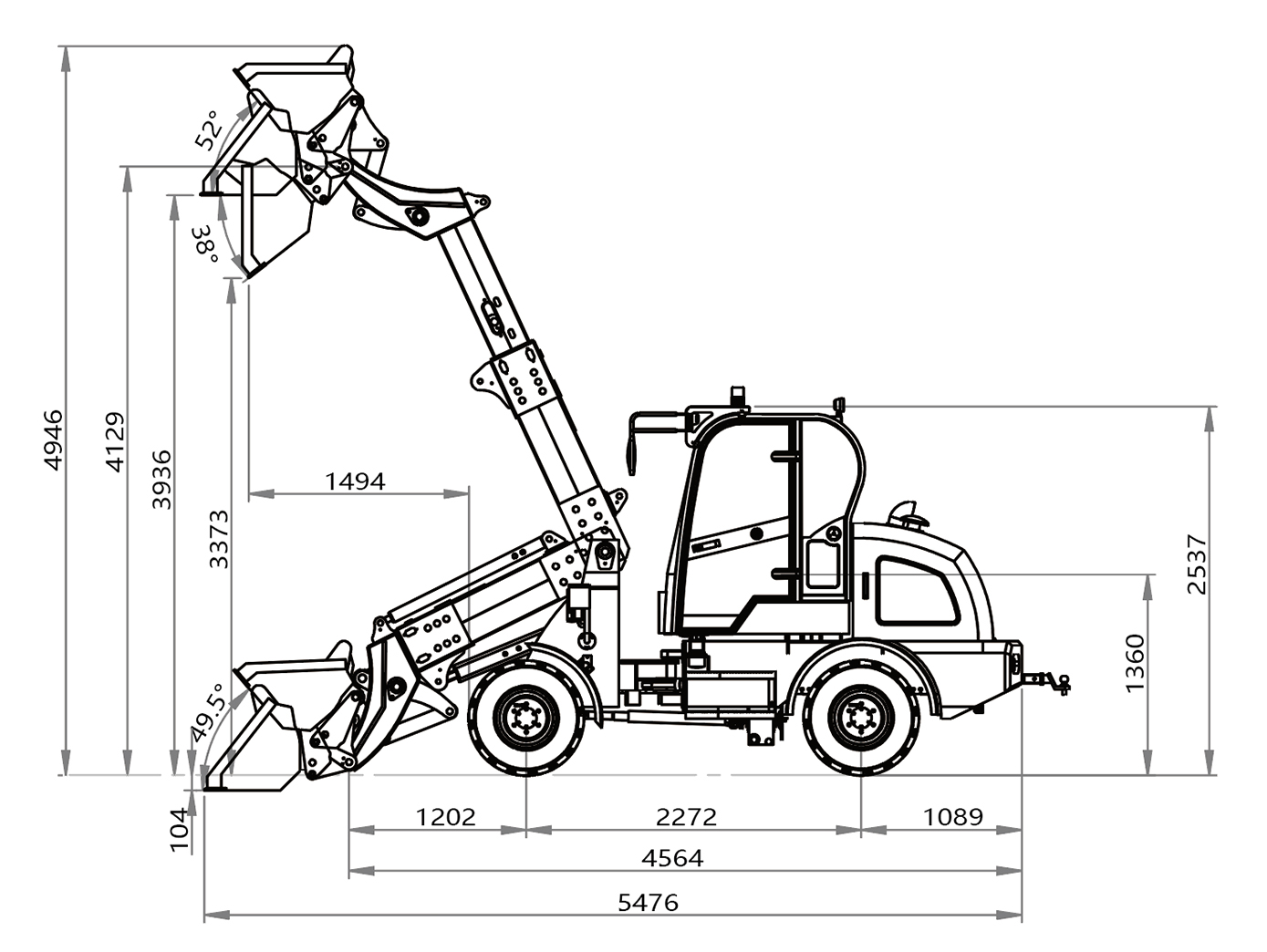

| Overall Size L×W×H(mm) | 5546×1741×2502 |
| Wheel Base (mm): | 2272 |

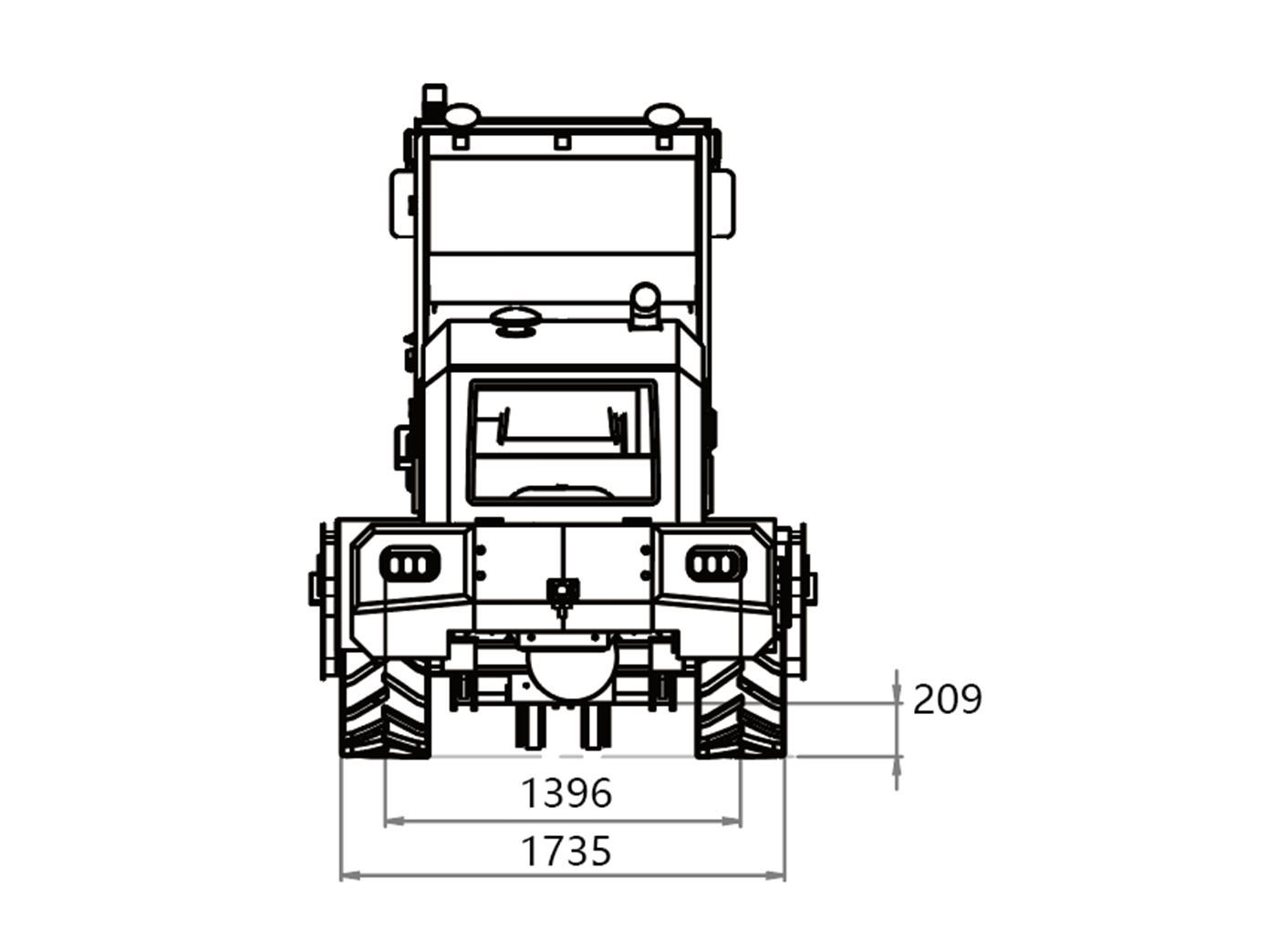

Wheel Thread(mm): | 1396 |
Max. dump height(mm): | 3373 |
| Standard Tire: | 20.5-16 |
| Option Tire: | 31×15.5-15 |
| Operating Weight(kg): | 3500 |
