WL938
SPECIFICATIONS
Dimensions(mm)
7275×2500×3080
Engine Model
DEUTZ
Power(KW)
118
Introduce
Standard Configurations:
Weichai Deutz 6 cylinders engine 118kw, hydraulic joystick, standard bucket, luxury cabin with heater, warning light, adjustable steering wheel and seat, the bucket can be level automatic, back sound, radio, fan, hand brake, extinguisher, window hammer, Free parts, toolbox. 20.5-25 tires. Standard with 3 hydraulic lines
Optional:
Cummins engine, quick hitch, air conditioning, joystick control, heater, all kinds of attachments, etc.
Specifications
| Type | Data |
|---|---|
| Bucket Capacity (Cbm): | 2.0-2.4 |
| Rated Load (Kg): | 4000 |
| Overall Weight (Kg): | 12000 |
| Dumping Clearance (mm): | 3250 |
| Standard Engine: | DEUTZ |
| Rated Power (Kw): | 118 |
| Rated Speed (R/Min): | 2200 |
| Optional Engine: | CUMMINS |
| Wheel Base (mm): | 1920 |
| Tread (mm): | 2770 |

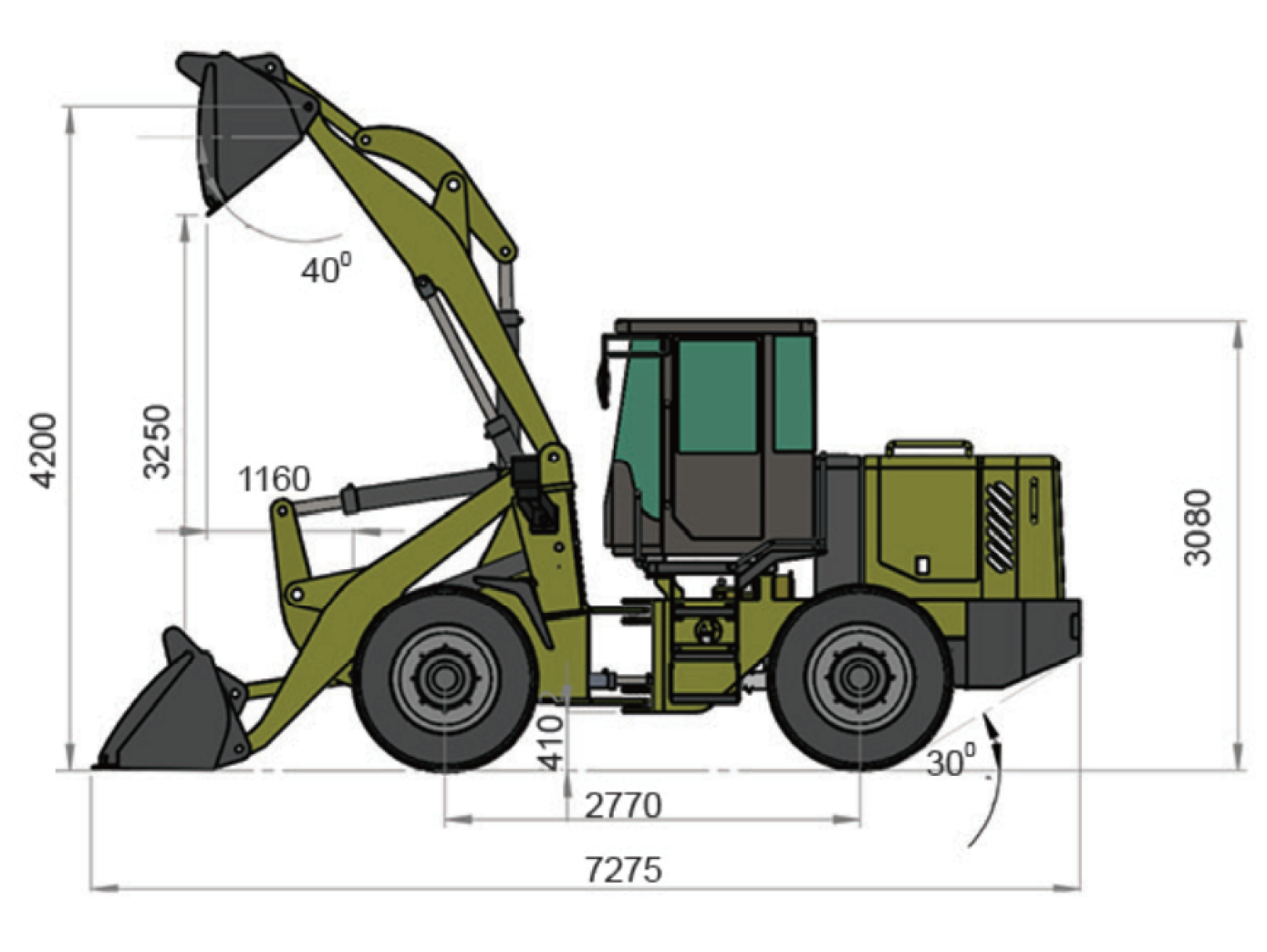

| LX WXH (mm): | 7275×2500×3080 |
| Standard Tire: | 20.5-25 |
| Option Tire: | 20.5-25 TUBELESS |
| Max. Driving Speed (km/h): | 40 |
