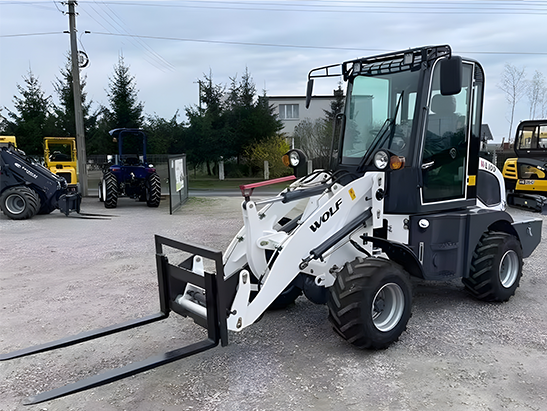

Wheel Loader
WL100
Wheel Loader
Performance and characteristic
1.Streamlined appearance, beautiful and elegant.
2.Fully hydraulic steering system, easier operation.
3.Bucket can be leveled automatically, high productivity.
4.Comfortable operation environment, new design cabin, air-conditioner at option.
5.Various working devices of attachment are available, such as wooden fork, pipe fork, grass fork, stone bucket, enlarged bucket, plow, fork etc, to meet different needs.
Standard configuration
Changchai ZN490B engine 39kw,4WD, 900-16 tires, joystick, standard bucket, VARTA Battery, floating function, luxury cabin with heater, new engine hood, 220V engine preheat, warning light, adjustable steering wheel and seat, bucket can be level automatic, back sound, radio, fan, hand brake, extinguisher, window hammer, Free parts, tool box.Standard with 3 hydraulic lines
Optional
Imported engine, Quick Hitch, double heater, air conditioning, electric floating, extra Hydraulic Line,electronic joystick, different attachments etc.
| Type | Data |
|---|---|
| Engine Model: | CHANGCHAI 490 |
| Rated Power(kw): | 39 |
| Rated Speed(rpm): | 2400 |
| Rated load(kg): | 1000 |
| Rated Bucket Capacity(m3): | 0.4-0.6 |

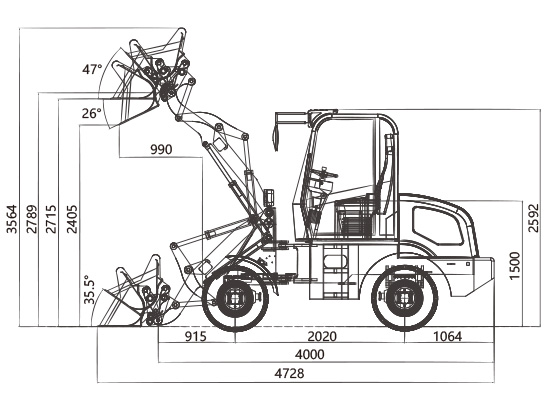

| Overall Size LxWxH(mm): | 4728×1700×2600 |
| Wheel base (mm): | 2020 |

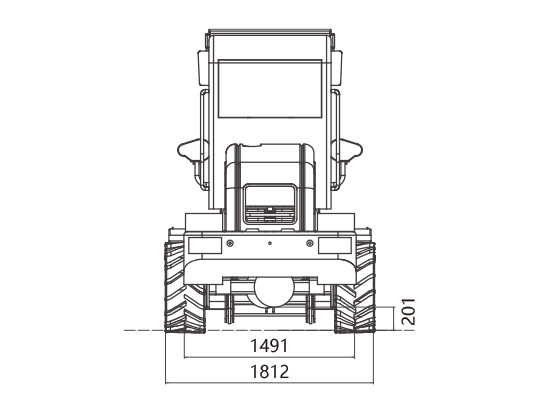

| Wheel thread(mm): | 1490 |
| Max.breakout force (KN): | 40 |
| Max.dump height(mm): | 2405 |
| Dump distance(mm): | 990 |
| Total time(s): | 9.5 |
| Operating Weight(kg): | 3300 |
| Tyre: | 900-16/1200-16/31×15.5-15/20.5-16 |
