Products

Wheel Loader

Responsive image

Mini 780T

SPECIFICATIONS
Dimensions(mm)

4545×1520×2483

Engine Model

Changchai ZN390Q

Power(KW)

25

Introduce

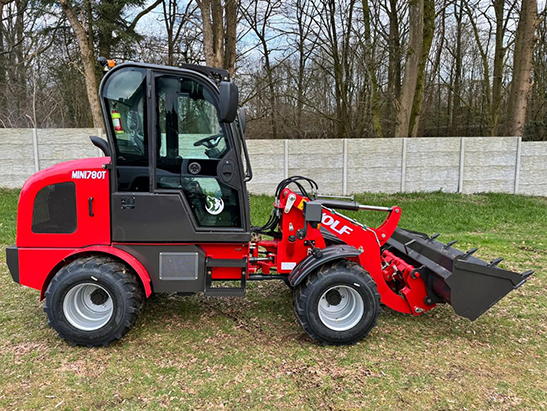

The Mini 780T wheel loader is compact, yet powerful, with a small turning radius that allows it to maneuver easily in tight spaces. Open cabin and enclosed meet different demands. The standard engine is the Changchai ZN390Q engine, and the optional Xinchai 490 Euro 3 engine or Changchai 390 Euro 5 engine is based on various engine emissions standards in other markets.

We have different tires for you to choose from based on your working conditions. Standard narrow tires, a little wider 29x12,5-15 tires, and the most commonly used 31x15.5-15 tires. You can always customize your loader.

It was widely welcomed by European customers when published.

Standard Configuration:

 - Changchai 3 Cylinders engine 25KW
 - Standard Joystick
 - Standard 825-16 tires
 - Safety Canopy
 - 3 ways hydraulic pipelines
 - Rear Trailer ball
 - Standard bucket

Specifications

TypeData
Engine Model:Changchai ZN390Q
Rated Power(kw):25
Rated Speed(rpm):2600
Rated load(kg):1000
Rated Bucket Capacity(m3):0.4
Overall Size LxWxH(mm):4545×1520×2483
Wheel base (mm):2145
Wheel thread(mm):1175
Max.breakout force (KN):32
Max.dump height(mm):2023
Dump distance(mm):831
Total time(s):9.2
Operating Weight(kg):2800
Tyre:825-16/10-16.5/28x9.5-15/31x15.5-15
