WL922

SPECIFICATIONS

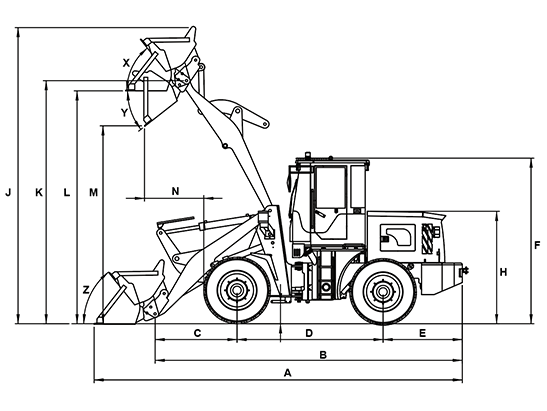

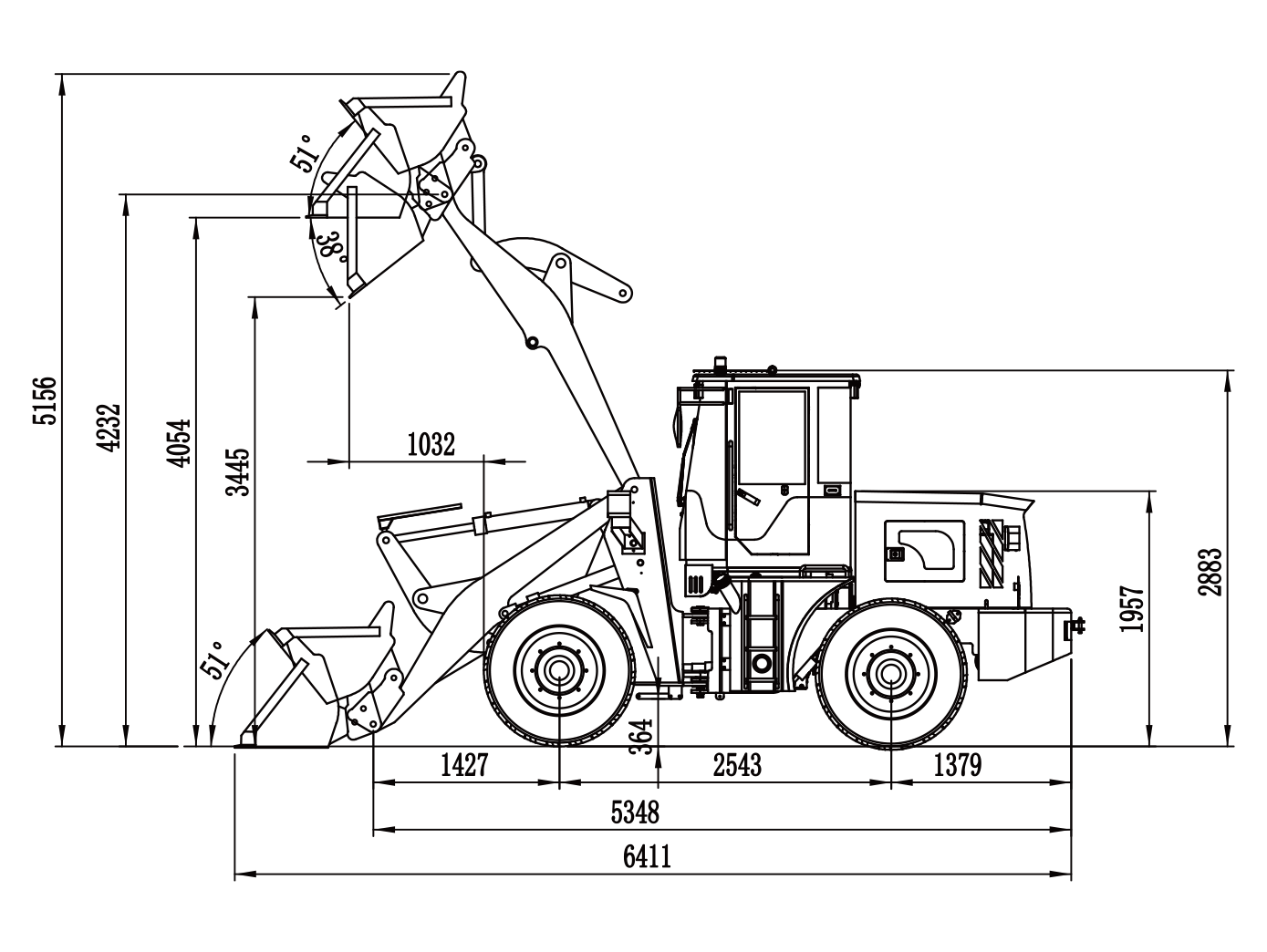

Dimensions(mm)

5900×2055×2615

Engine Model

CHANGCHAI 490

Power(KW)

39

Introduce

WL922 is one of the most popular wheel loader in South America and Africa, especially in farm and construction. Economical and practical, it could replace 4-5 manpower.

Standard configuration:

Changchai 490 engine,4WD, 20.5/70-16 tires, mechanical joystick, standard bucket, Camel Battery, luxury cabin, the bucket can be level automatic, back sound, hand brake, extinguisher, window hammer, Free parts, toolbox.

Optional:

Xinchai Euro 3 engine/Yanmar engine, Quick Hitch, double heater, air conditioning, electric floating, extra Hydraulic Line, electronic joystick, different attachments, etc.


Specifications

TypeData
Bucket Capacity (Cbm):0.9-1.1
Rated Load (Kg):2000/600
Overall Weight (Kg):3300
Dumping Clearance (mm):2850/3200
Standard Engine:CHANGCHAI 490
Rated Power (Kw):39
Rated Speed (R/Min):2400
Optional Engine:XI CHAI/XIN CHAI
Wheel Base (mm):1500
Tread (mm):2100
LX WXH (mm):5800×1700×2820
Standard Tire:20.5-16
Option Tire:31×15.5-15
Max. Driving Speed (km/h):18-20
