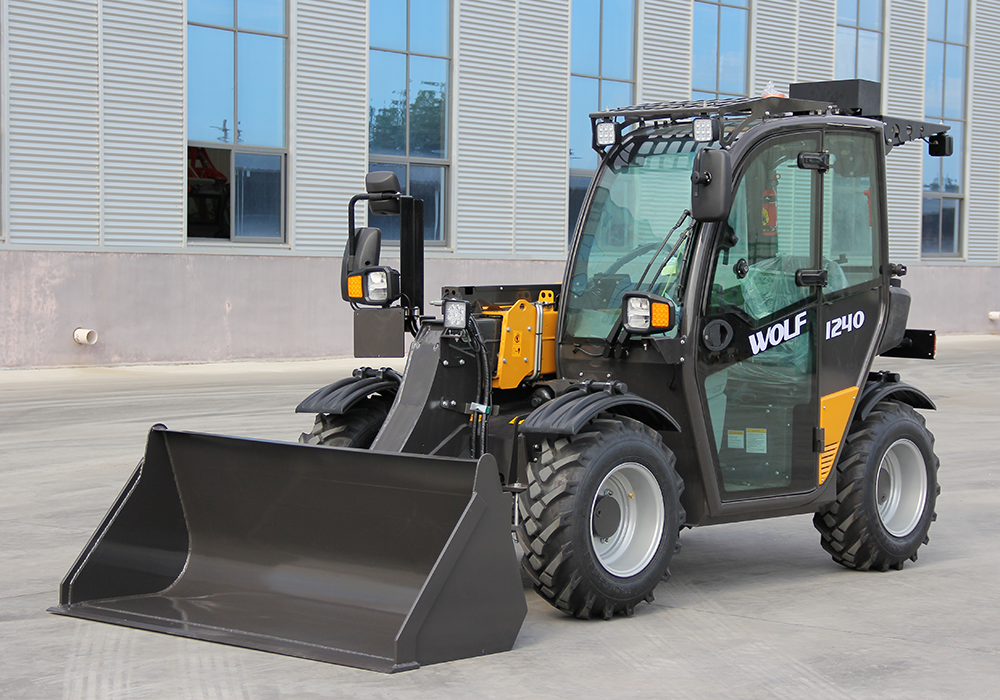

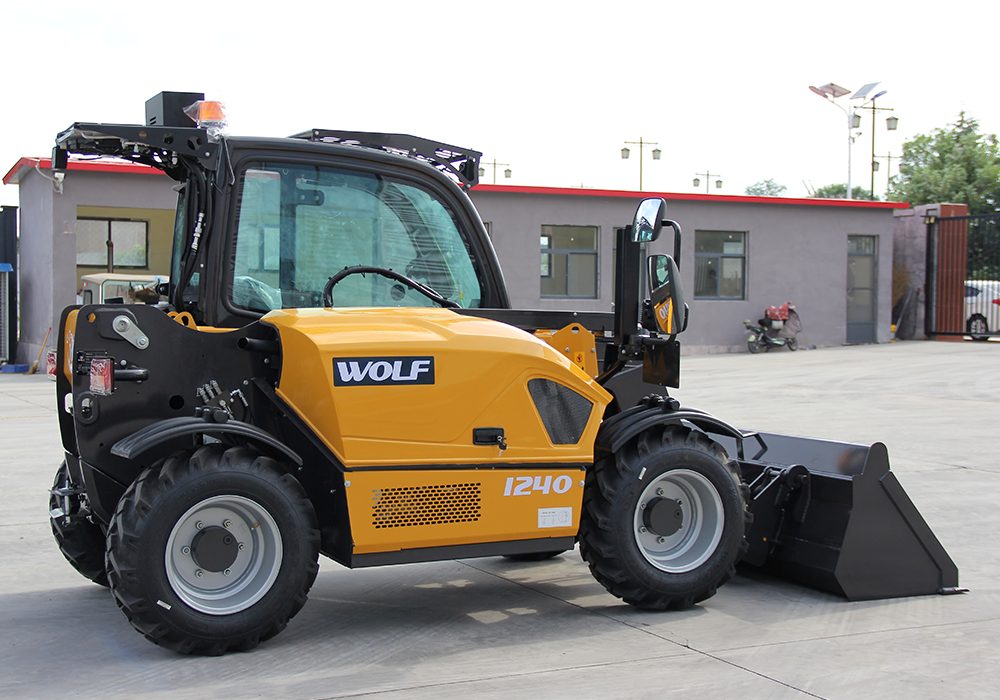

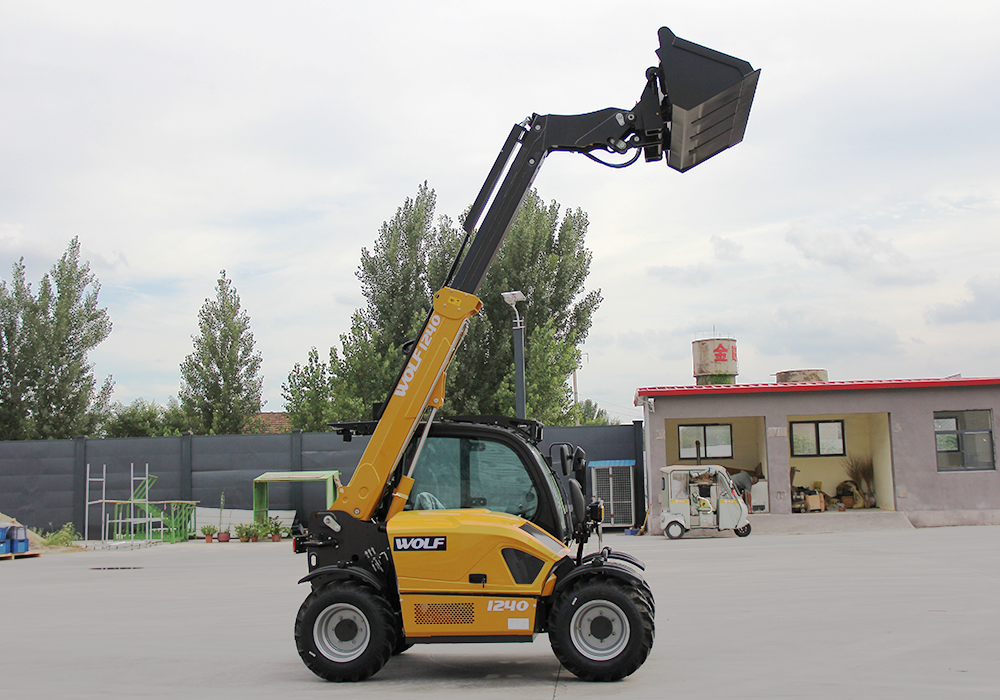

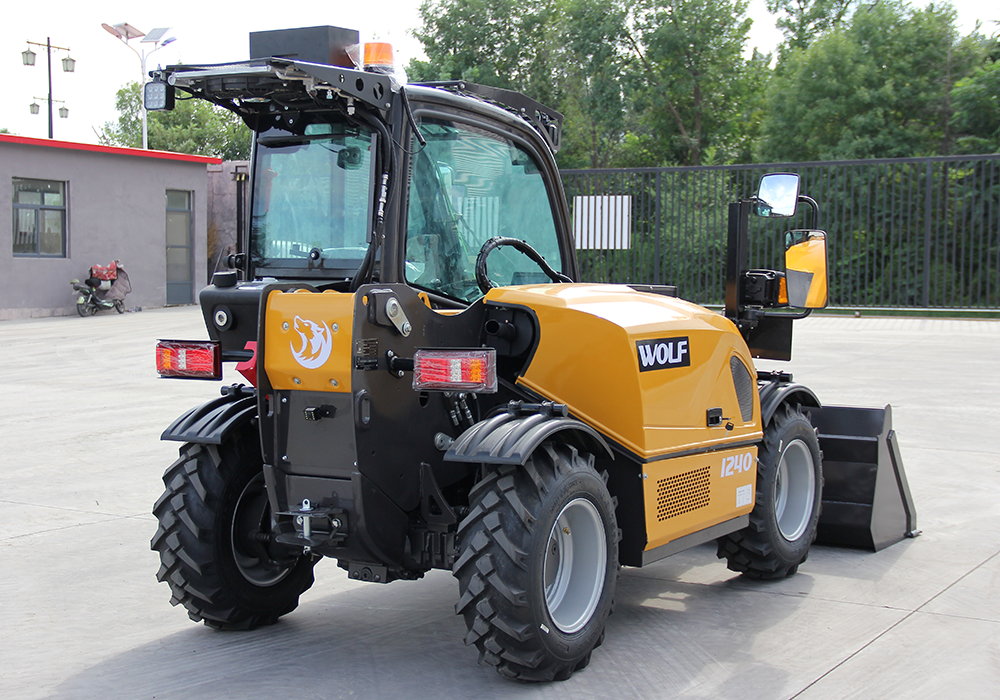

Telehandler
1240P
Telehandler
| OPERATIONAL DATA | 1240PLUS |
|---|---|
| Max.payload | 1500kg |
| Bucket capacity | 0.45m³ |
| Overall weight | 2750kg |
| Tires | 10.0/75-15.3or29X12.5-15 |

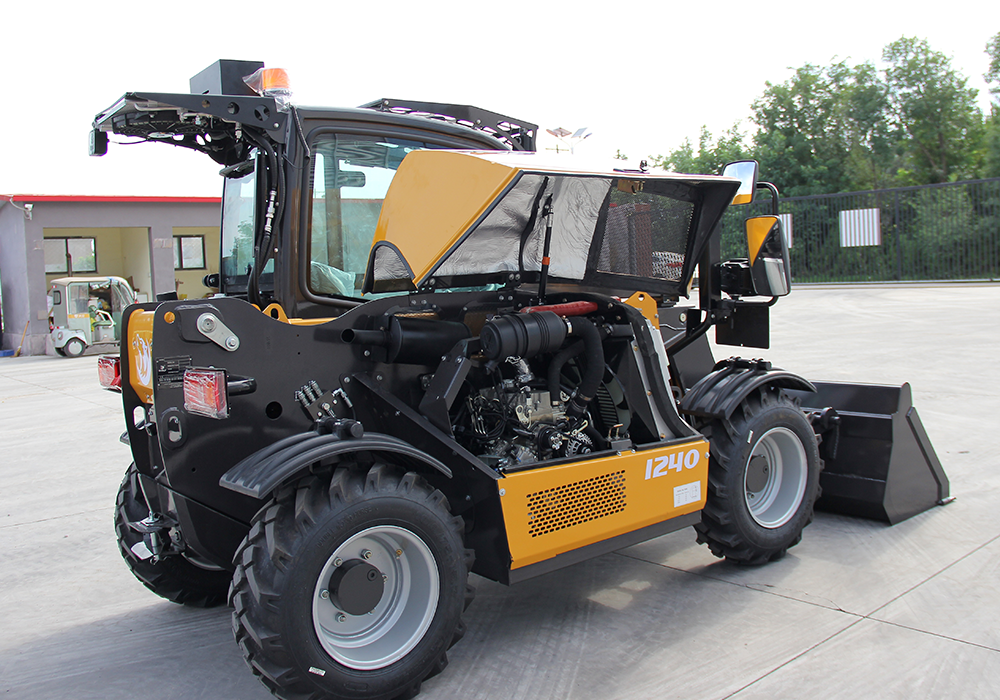

| ENGINE | |
| Manufacturer | Yanmar |
| Model | 3TNV86CT |
| Type | water-cooled,turbocharged,threestroke |
| Rated power/speed(KW) | 32.4kw/3000r/min |
| Maximum torque | 107 |
| Displacement | 1.6L |
| Transmission | |
| Brand/Model | PWG |
| Type | Hydrostatic via universal joint shaft |
| Speed first gear | 0-8km/h |
| Speed second gear | 0-20km/h |
| Axle | Planetary-steering drive axle |
| Work Hydraulics | |
| Brand | PWG |
| Work pump | Gear pump |
| Discharge volume | 54L |
| Pressure | 225Bar |
| Filling levels | |
| Fuel tank | 33L |
| Hydraulic oil tank | 36L |
| Dimensions | |

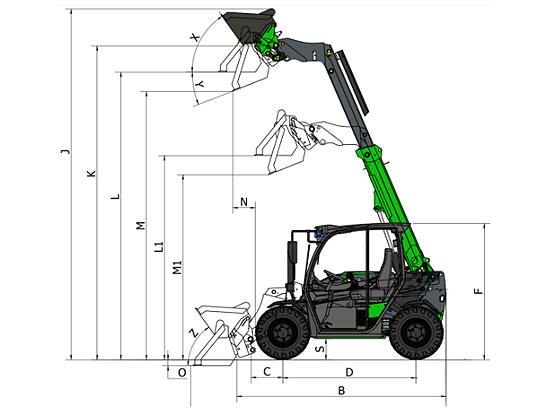

| A.Total length | 3944mm |
| B.Total length without bucket | 2991mm |
| C.Bucket pivot point(to center of axle) | 450mm |
| D.Wheel base | 1922mm |
| E.Rear overhang | 427mm |
| F.Height with cab lowered | 1995mm |
| Height with cab | 978mm |
| Height with cab raised | 5280mm |
| H.Seat height | 4537mm |

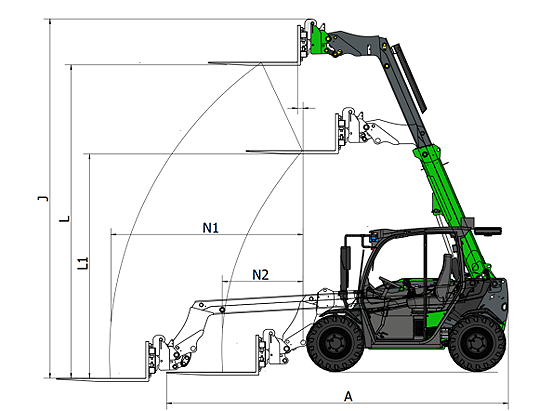

| J.Total working height | 2949mm |
| K.Bucket pivot point(max.lift height) | 4163mm |
| L1.Load-over height telescopic arm retracted | 3944mm |
| L.Load-over height telescopic arm extended | 2991mm |
| M1.Dumping height telescopic arm retracted | 2415mm |
| M.Dumping height telescopic arm extended | 3630mm |
| N.Reach(at M) | 557mm |
| O.Digging depth | 91mm |

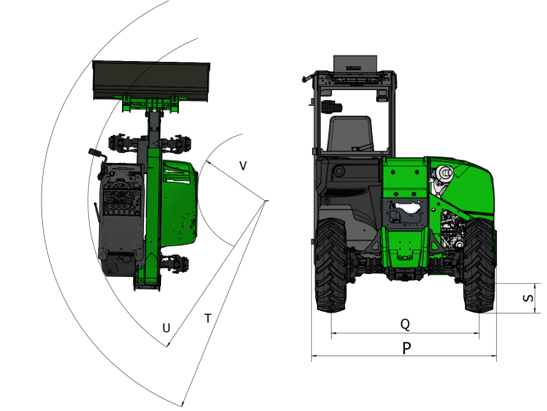

| P.Total width | 1564mm |
| Q.Track width | 1245mm |
| S.Ground clearance | 294mm |
| T.Maximum radius | 3506mm |
| U.Radius on the outer edge | 2695mm |
| V.Inner radius | 951mm |
| X.Rollback angle at max.lift height | 52° |
| Y.Dumping angle | 31° |
| Z.Rollback angle on ground | 44° |
