Introduce

Specifications

		WS800	WS1000	WS1100	WS1200	WS1300	WS1300VA
Operating load	kg	800	1000	1100	1200	1300	1300
Max Speed	km/h	14	14	14	14	14	14
Rated flux	L/min	84.8	84.8	80	90	93.6	93.6
High Flow Flux	L/min	/	/	130	140	158.6	158.6
Tire(track)	model	10/16.5	10/16.5	10/16.5	12/16.5	12/16.5	12/16.5
Rated power	Kw	36.7	36.7	45	55	70	70
Fuel tank capacity	L	78	78	78	58	58	58
Self weight bucket	kg	3160	3150	3180	3550	3600	3650
Bucket capacity	m3	0.45	0.45	0.45	0.6	0.6	0.6

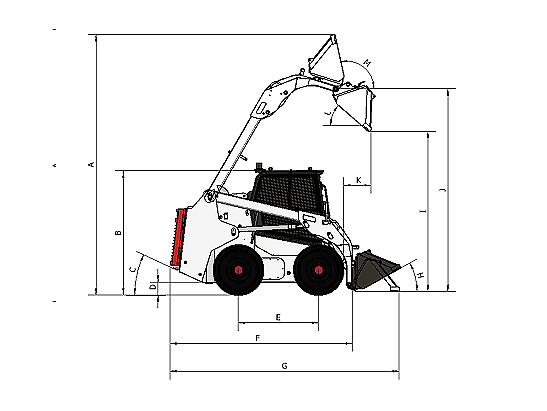

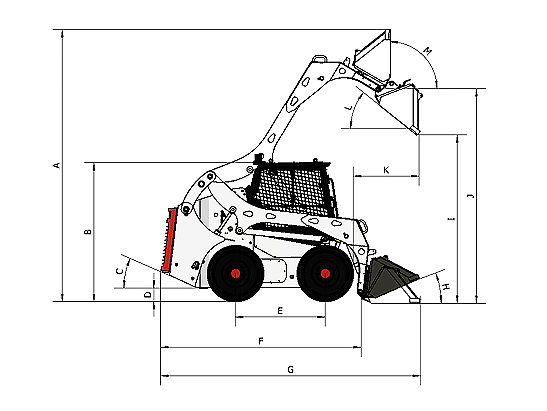

A. Max. Operation Height	mm	3890	3890	3890	4080	4080	4080
B.Cab Roof Height	mm	2000	2000	2000	2040	2040	2040
C. Departure Angle	°	21	21	21	25	25	25
D. Ground Clearance	mm	185	185	185	205	205	205
E.Wheelbase	mm	1078	1078	1078	1313	1313	1313
F. Overall Length (without attachments)	mm	2825	2825	2825	2900	2900	2900
G. Overall Length (with standard bucket)	mm	3410	3410	3410	3760	3760	3760
H. Bucket Ground Level Angle	°	30	30	30	30	30	30
I. Dump Height	mm	2475	2475	2475	2530	2530	2530
J. Lift Height (at pin)	mm	3120	3120	3120	3210	3210	3235
K. Dump Reach	mm	465	465	465	600	600	600
L. Dump Angle	°	43	43	43	40	40	40
M. Bucket Rotation Angle at Max Height	°	99	99	99	107	107	107

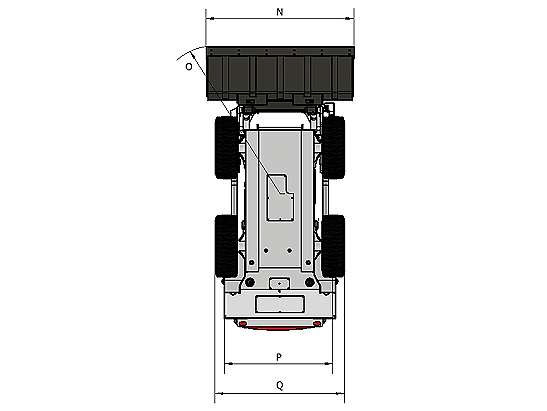

N. Overall Width (with standard bucket)	mm	1800	1800	1800	2000	2000	2000
O. Turning Radius	mm	1213	1213	1213	1370	1370	1370
P. Overall Width (without bucket)	mm	1640	1640	1640	1800	1800	1800
Q. Track Width	mm	1370	1370	1370	1500	1500	1500
