Forklift

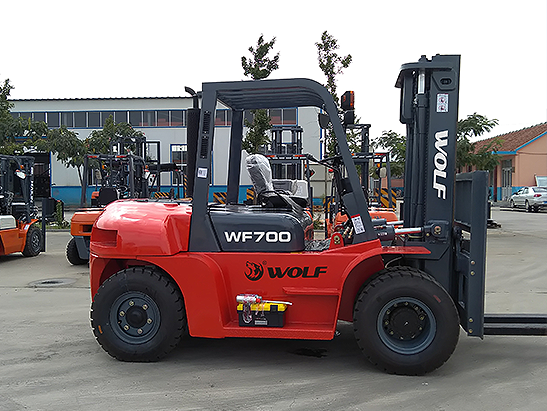

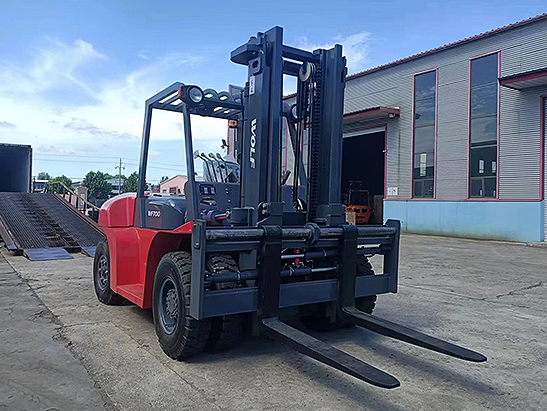

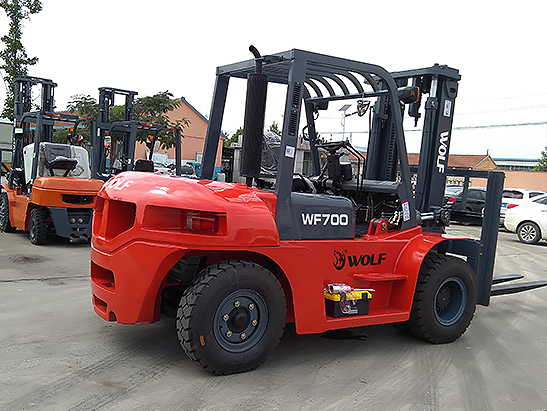

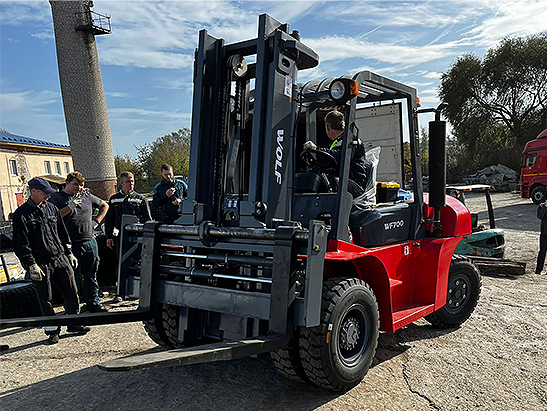

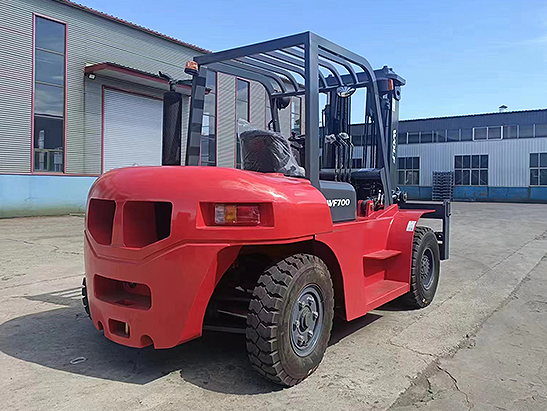

WF700
Forklift
| Specification | WF700 | ||
|---|---|---|---|
| Characteristics | |||
| Fuel type | - | Diesel | |
| Load capacity | kg | 7000 | |
| Load center | mm | 600 | |
| Lift height | mm | 3000 | |
| Full free lift height | mm | 220 | |
| Fork dimension | mm | 1220×150×65 | |
| Mast tilting angle | Front/Rear | Deg. | 6/12 |
| Min. turning radius | mm | 3380 | |
| Groud clearance | mm | 200 | |
| Overhead guard height | mm | 2460 | |
| Front overhang | mm | 625 | |
| Performance | |||
| Max. travel speed | Full load | km/h | 26 |
| Max. lift speed | Full load | mm/s | 400 |
| Max. traction power | Full load | KN | 51.4 |
| Dimensions | |||
| Max. gradeability | % | 20 | |
| Total length | With fork | mm | 4770 |
| Total length | Without fork | mm | 3550 |
| Total width | mm | 2235 | |
| Mast extended height | mm | 4380 | |
| Mast lowered height | mm | 2500 | |
| Chassis | |||
| Tyres | Front | - | 8.25-15-14PR |
| Rear | - | 8.25-15-14PR | |
| Wheelbase | mm | 2250 | |
| Tread | Front/Rear | mm | 1470/1700 |
| Service weight | Kg | 9340 | |
| Drive | |||
| Battery | Model | V/Ah | (12/80)*2 |
| Motor | Power | - | Xinchai 4DF3 |
