JX4507

SPECIFICATIONS
Dimensions(mm)

5920×2250×3770

Engine Model

YC4A105Z-T20

Power(KW)

75

Introduce

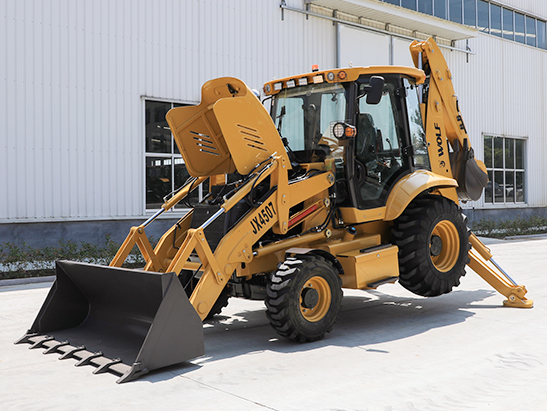

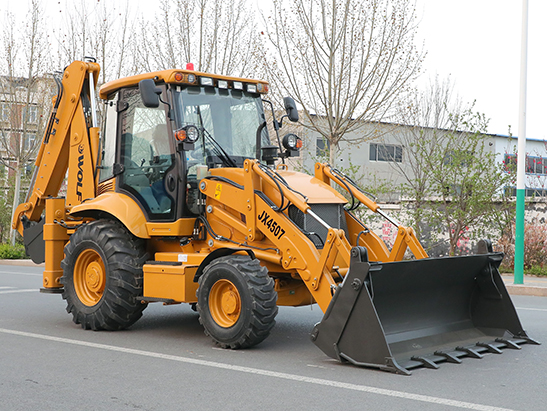

JX4507 backhoe loader is an upgraded model based on JX4507, The upgraded luxury cabin with ROPS and FOPS certification ensures maximum safety and comfort for the operator, and the strengthened digging arm gives the machine a more robust and heavy-duty appearance, resulting in more efficient digging performance. With a 2.5-ton loading capacity, JX4507 is powered by a 75KW Yuchai engine or an optional 100HP Cummins engine. H-leg with hydraulic side shift function is preferred by many customers. You can easily switch between 4-wheel drive and 2-wheel drive based on different working requirements.

Specifications

Transport Dimension
L*W*H (mm):

5920×2250×3770

Overall Operating Weight:8200KG
Wheel base(mm):2264
Min. Ground Clearance:300mm
Bucket Capacity:1.0m3
Breakout Force:54KN
Loading Lifting Capacity:2500KG
Bucket Dumping Height:2740mm
Bucket Dumping Distance:1015mm
Digging Depth:52mm
Backhoe Capacity:0.3m3
Max. Digging Depth:4280mm
Swing Angle of Excavator Grab:190o
Max. Pulling Force:56KN
Engine
Model:

YC4A105Z-T20

Cylinder-Inside Diameter*Stroke:4-102×120
Rated Power:75KW
Rated Speed:2200r/min
Min. Fuel Consumption:≤242g/km.h
Max.Torque:≥410N.M
Displacement:4.4L
Tyre
Model:14-17.5/19.5L-24
Pressure of Front wheel:0.55 Mpa
Pressure of Back Wheel:0.223 Mpa
