JX45H
SPECIFICATIONS
Dimensions(mm)
6420×2360×3100
Engine Model
YC4A105Z-T20
Power(KW)
75
Introduce

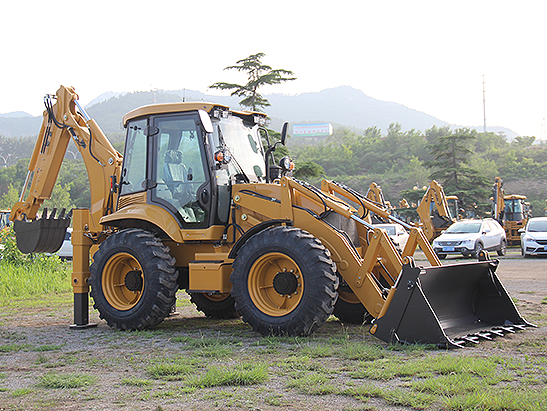

The JX45H backhoe loader is a versatile piece of construction equipment that combines the functions of a loader and a backhoe.
The JX45H is powered by a 4-cylinder, water-cooled diesel engine that delivers up to 68 horsepower. It has a maximum digging depth of 3.5 meters and a maximum reach of 5.1 meters. Digging bucket has a capacity of 0.3m³.The loader bucket has a capacity of 1.2m³and can lift up to 2,500 kg.
The JX45H is equipped with a range of features designed to improve productivity and efficiency on the job site. These include a servo-controlled excavator system, a hydraulic servo control system for the loader, and a 4-wheel drive system for improved traction.
Other features of the JX45H backhoe loader include:
Power steering for easy maneuverability
ROPS and FOPS certified cab for operator safety
Adjustable seat and tilt steering wheel for operator comfort
Easy-to-use joystick controls for precise operation
Smooth ride system for improved operator comfort during transport
Specifications
| Transport Dimension | |
|---|---|
| L*W*H (mm): | 6420×2360×3100 |
| Overall Operating Weight: | 9500KG |
| Wheelbase: | 2335mm |
| Min. Ground Clearance: | 300mm |
| Bucket Capacity: | 1.2m3 |
| Breakout Force: | 54KN |
| Loading Lifting Capacity: | 2500KG |
| Bucket Dumping Height: | 3100mm |
| Bucket Dumping Distance: | 900mm |
| Digging Depth: | 4050mm |
| Backhoe Capacity: | 0.3m3 |
| Max. Digging Depth: | 5100mm |
| Swing Angle of Excavator Grab: | 190o |
| Max. Pulling Force: | 39KN |
| Engine | |
| Model: | YC4A105Z-T20 |
| Cylinder-Inside Diameter*Stroke: | 4-102×120 |
| Rated Power: | 75KW |
| Rated Speed: | 2200r/min |
| Min. Fuel Consumption: | ≤242g/km.h |
| Max.Torque: | ≥410N.M |
| Displacement: | 4.8L |
| Tyre | |
| Model: | 16.9-28 |
| Pressure of Front wheel: | 0.35Mpa |
| Pressure of Back Wheel: | 0.45 Mpa |
